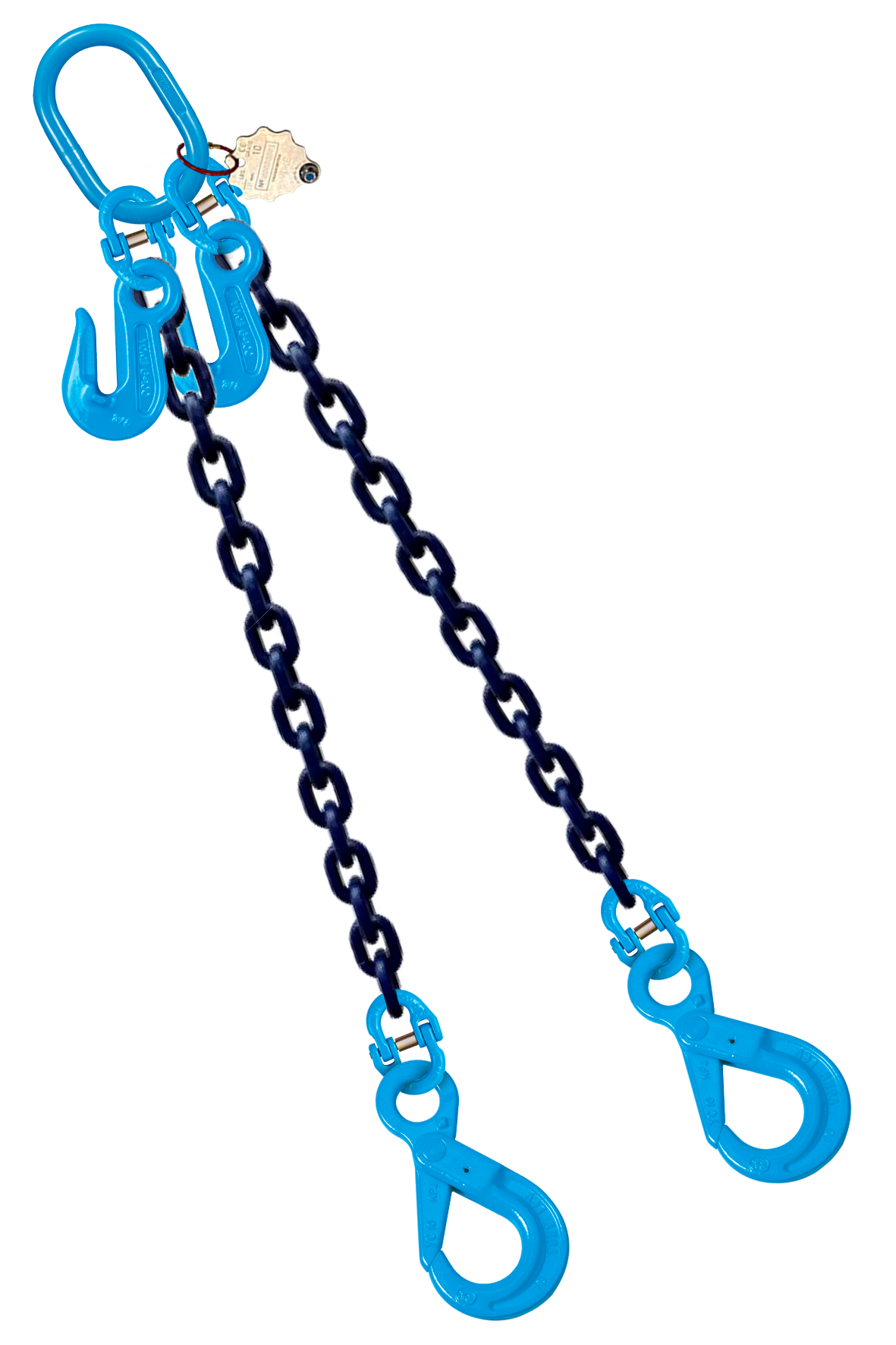

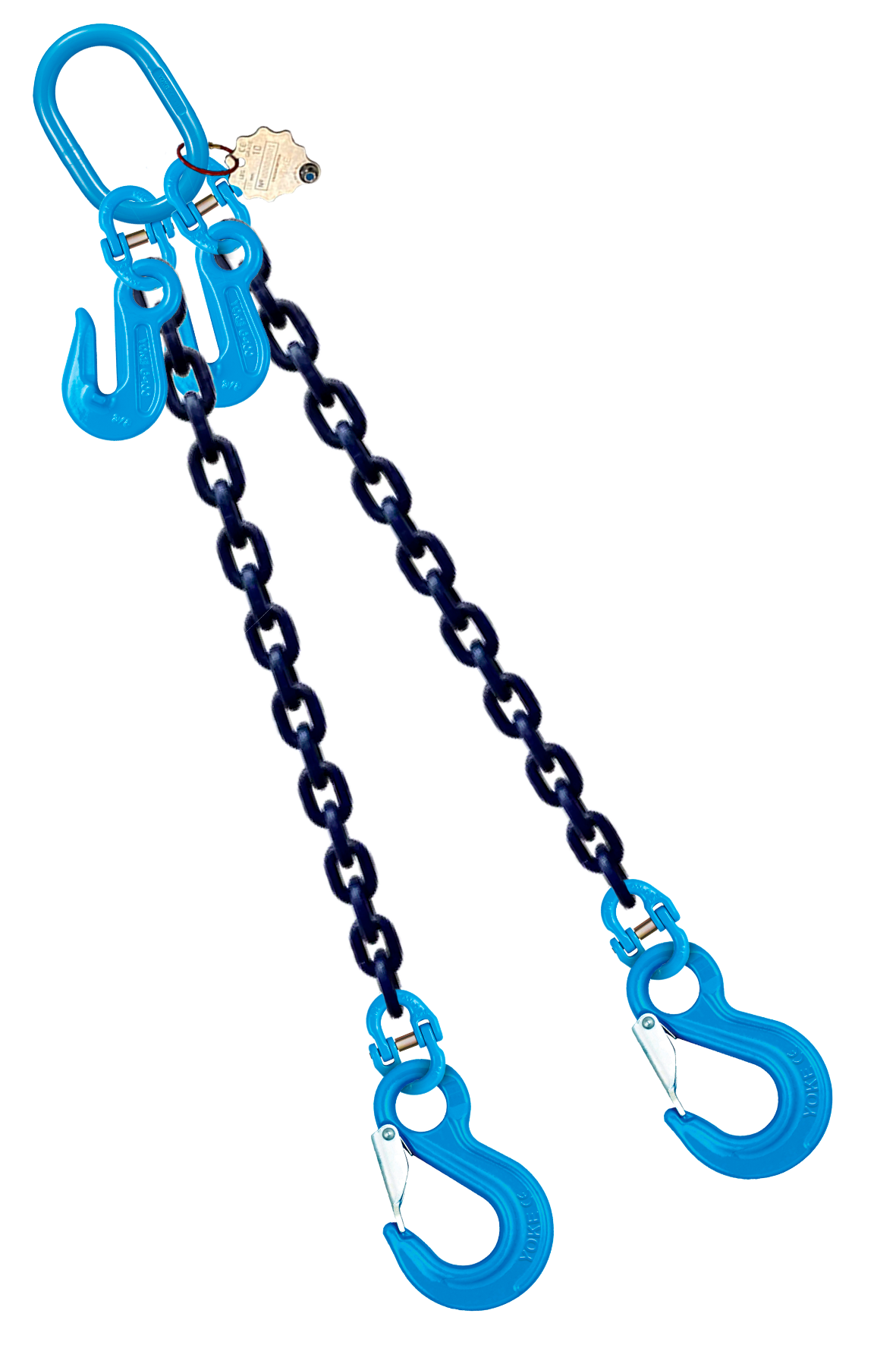

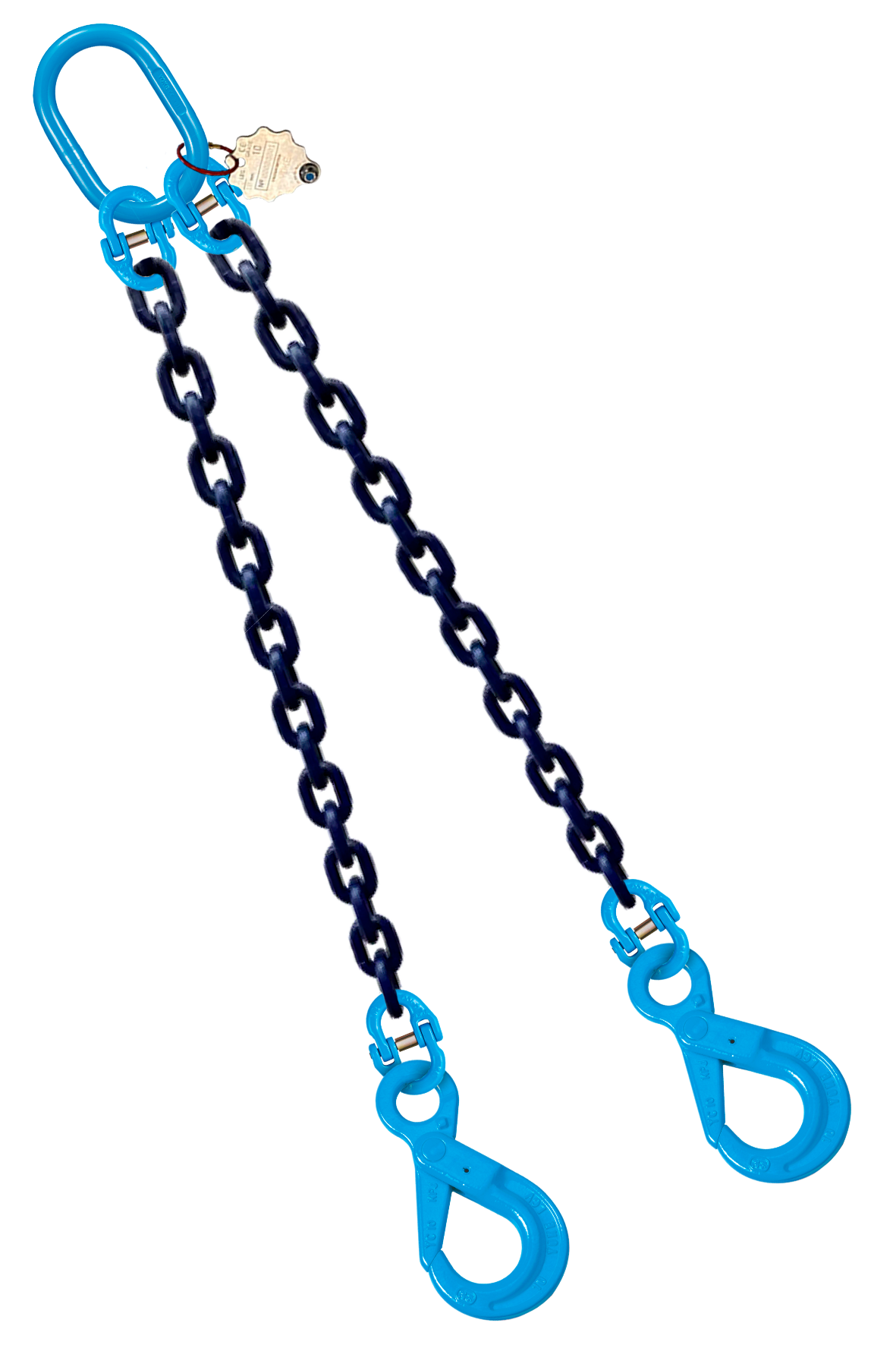

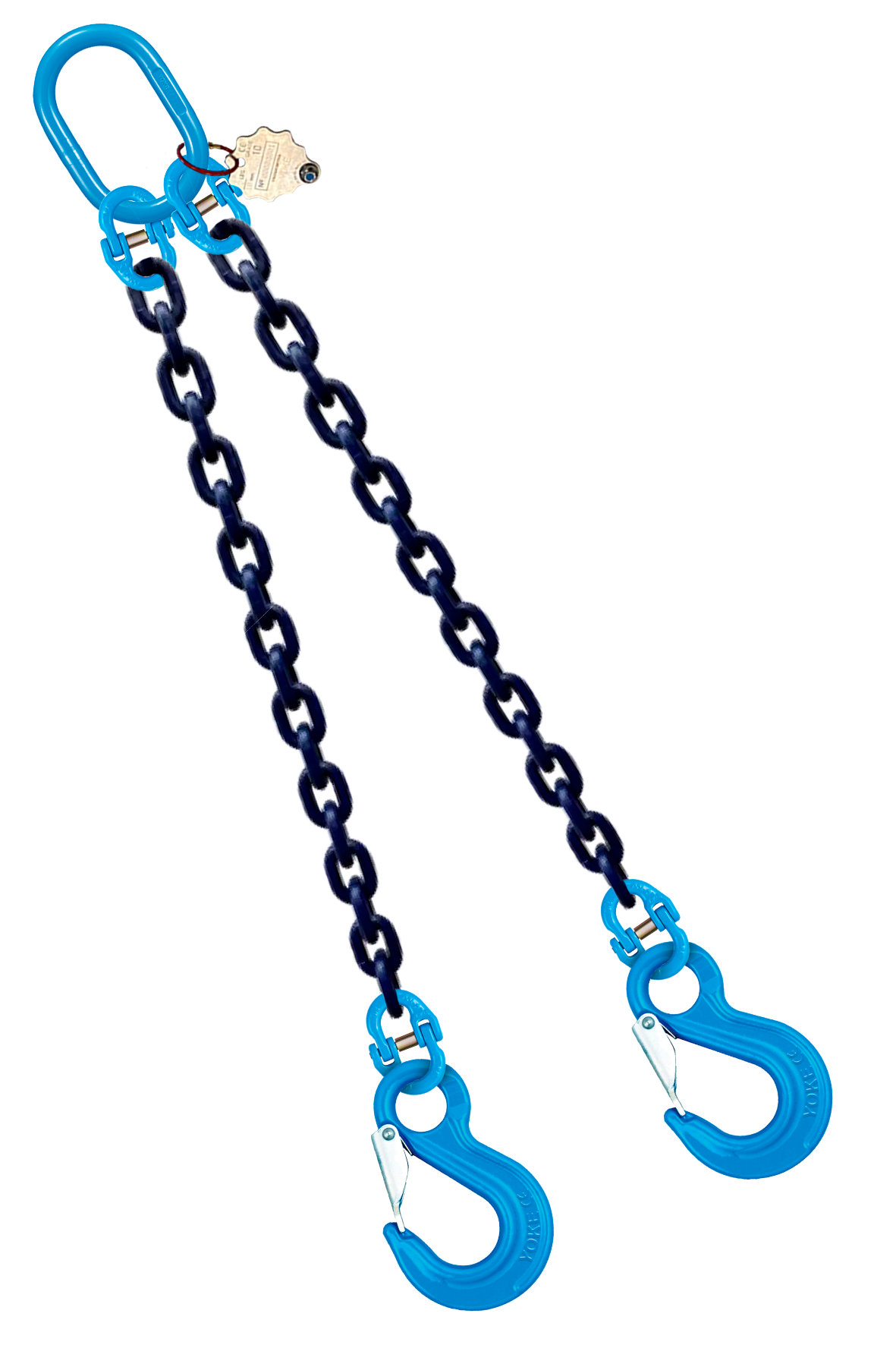

CX Digitalised G100 Double-leg Chain Sling - 20mm
by YOKE
SKU
Capacity: up to 22400Kg
€1,120.22
- 20mm Grade 100 chain.
- Double leg sling.
- For lifting 0-45 degrees.
- Digital chip and chain RFID Supratag included.
Safety factor 4:1.
Limits are valid for standard use and equally loaded slings. Proper use and maintenance of your YOKE chain slings will prolong their life and enable you to carry out your lifting operations efficiently and safely.
Warning: Never exceed a vertical sling angle of 60°.
YOKE slings may be used at temperatures between -40°C to 200°C with no reduction in the working load limit.
- Magnaflux Crack Detection: All forged components are individually magnaflux detected after heat treatment.
- Proof Load Testing: YOKE Yellow Points are proof load qualified to 2.5 times the Working Load Limit within 1% permanent deformation.
- Dynamic Fatigue Testing: Batch samples of YOKE Yellow Points are Dynamic Fatigue Tested to 20,000 cycles at 1.5 times the Working Load Limit.
- Ultimate Breaking Load Testing: Batch samples are tested in a static tensile testing machine until failure. Minimum ultimate force equals to the Working Load Limit times safety factor.
- Spectrographic Analysis: To assure of the proper metallurgy content of all raw materials
This product can lift a maximum of: 22400Kg
If you require a different maximum lift capacity, please select from the options below:
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
