STS Gas Cylinder Lifter & Rotator (Counterbalance)
Capacity: up to 250Kg

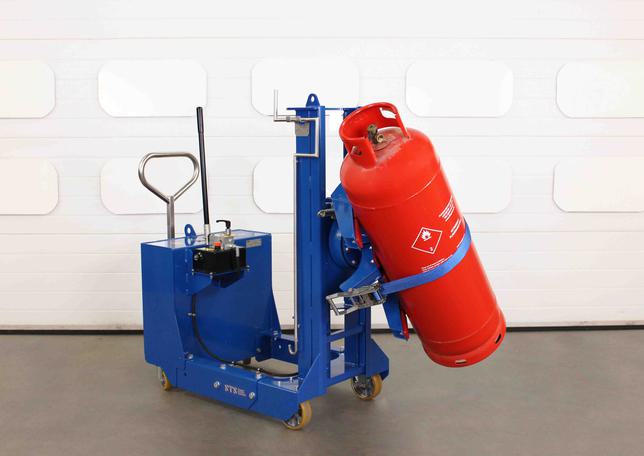

This gas bottle lifter rotator is counterbalance which makes it ideal for use in narrow workspaces. The design eliminates the need for outlying legs in front of the machine, enabling operators to place cylinders in areas that would otherwise be difficult to access. The unit features a manual-hydraulic hand pump and a manual winch rotation which allows the gas bottles to be rotated at height. This model has a safe working load (SWL) of 250kg.
The unit has a rubber support pad to suit gas bottles with diameters between 180mm to 550mm, and heights from 1200mm to 1800mm. The operator secures the cylinder against the pad using a ratchet and strap mechanism before lifting and manoeuvring it into place.
The unit is fitted with a slew-ring gearbox assembly which allows drums to be rotated sideways. The operator uses a long stainless steel crank handle to rotate the gearbox and therefore the drum. The advantage of this model over other drum tippers is the smaller footprint and counterbalanced design.
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
