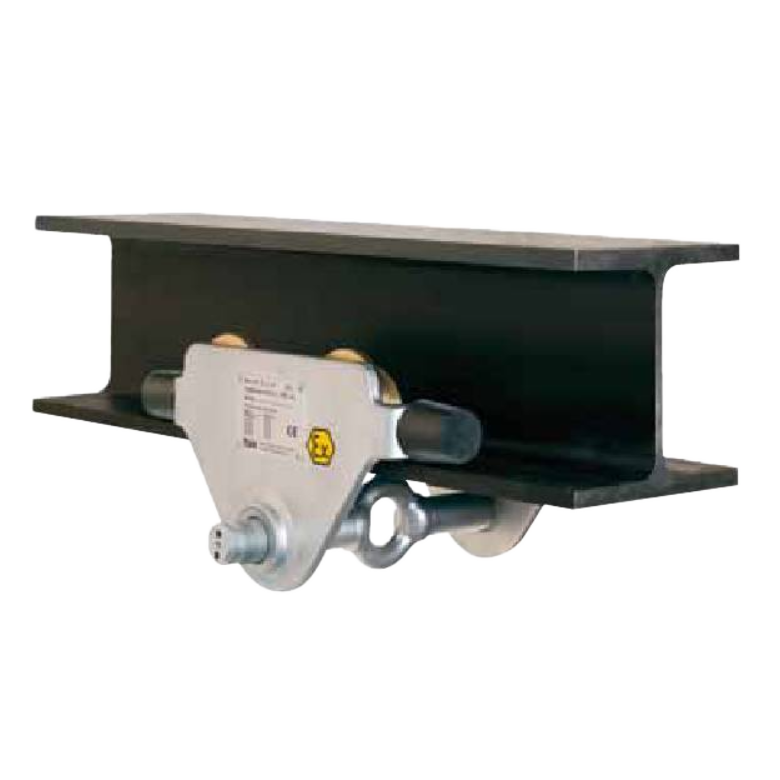

Yale HTP ATEX Push Travel Trolley (2000Kg)

Yale HTP ATEX Push Travel Trolley (2000Kg)

by Yale
SKU N05100056

Capacity: up to 2000Kg

Push Travel Trolley

€671.10

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting or pneumatic chain hoist equipment.

It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.

This product can lift a maximum of: 2000Kg

If you require a different maximum lift capacity, please select from the options below:

500Kg
1000Kg
2000Kg
Availability: Translation missing: en.general.icons.icon_check_circle icon In stock, typically despatched within 1-2 working days

If the options here don't meet your requirements, we can customise your order.

Please give us a call on (021) 4885 311 or complete the quote request form.

Features

  • Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
  • Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right (up to 5000 kg capacity, from 8000 kg upwards the traverse is adjusted via sleeves and washers).
  • The trolley wheels are designed for a max. beam profile incline of 14% (DIN 1025 - part 1).
  • Explosion protected version with MKS spark resistant coating.
  • Trolleys equipped with rubber buffers.
  • Stainless steel hand chain for model HTG.

Options up to 20000 kg capacity:

  • Rotating hand chain guide.
  • Stainless steel hand chains.
  • Locking device to secure the trolley in position on the beam (park position e.g. on ships).
  • Corrosion resistant version.

Options:

  • Locking device to secure the trolley in position on the beam (park position e.g. on ships)
  • Solid bronze wheels only for HIGH design
