Pfaff console-mounted rope winch SW-K-LAMBDA
by Pfaff
SKU 30272015
Capacity: up to 300Kg
€2,002.33
Capacity 300 kg
The compact rope winch for applications on stages, in studios, theatres, etc.
Features
- State-of-the-art design with galvanized side sections for easy handling.
- Grooved drum for single-layer winding of the steel rope. An 18:1 ratio between drum and rope diameter increases the service life of the rope substantially.

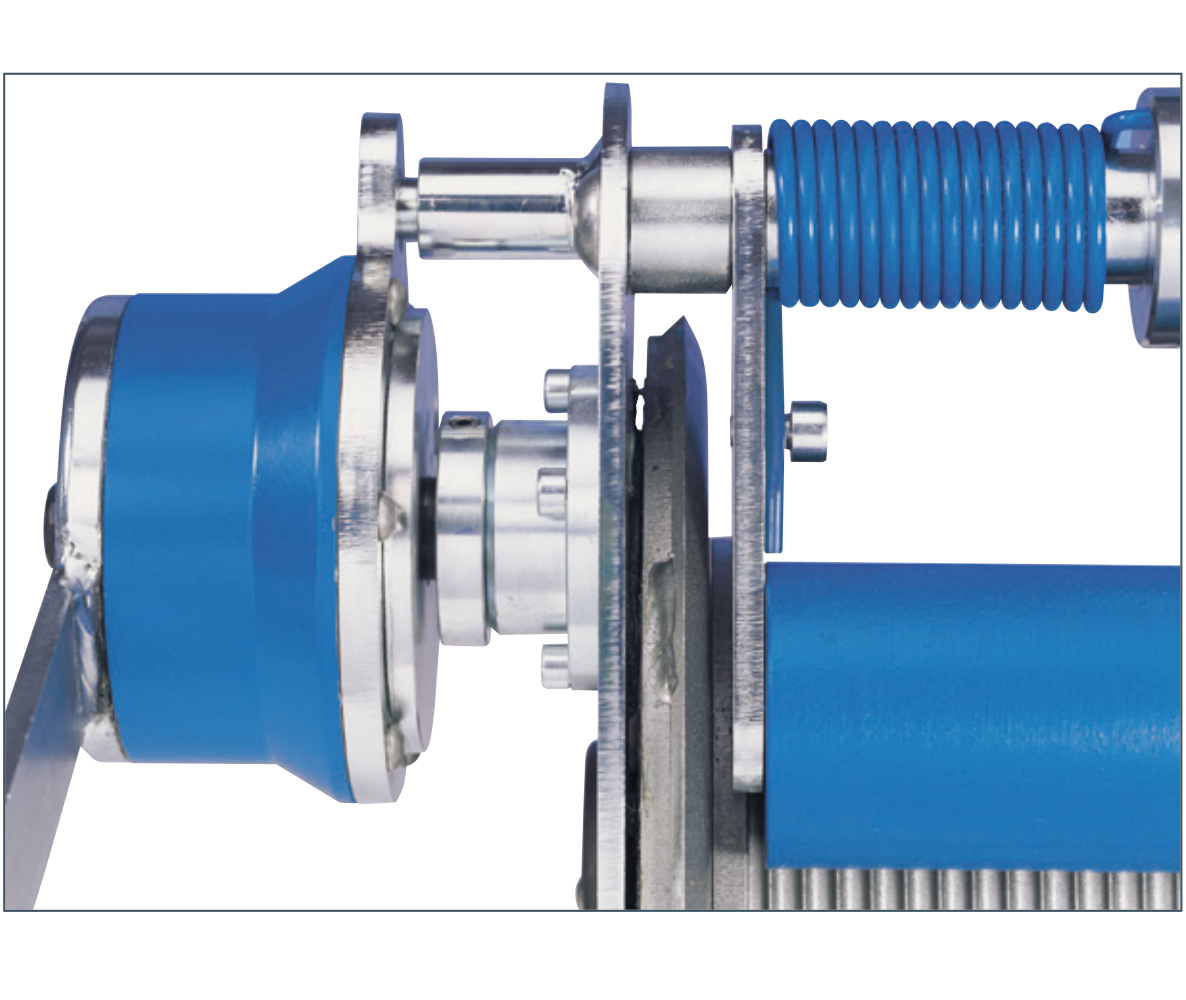

- With spring-loaded rope pressure roller to prevent the unloaded rope from jumping off the drum.
- Gear rated for twice the nominal load.
- Spur gear drive for optimal efficiency and comfortable handling.
- The fitted safety crank with two spring brakes acting independently of each other for safe holding of the load in any position.
- Complies with DGUV Vorschrift 17 (BGV C1) and DIN 56925-1
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
