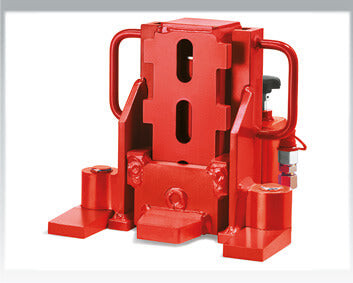

Yale Hydraulic machine jacks YAS

Capacity 3 – 25 t

Hydraulic machine jacks are designed for the safe lifting and positioning of machines and similar heavy equipment.

Features

Integrated hydraulic pump.
Pump lever swivel mounted 270° for operation even in extremely confined areas.
Same load can be lifted on either the head or the claw of jack.
Welded, distortion-proof steel construction.
High quality, durable hydraulic components.
The flat lifting claw allows low jacking height.
The additional connect coupler (10 t capacity and larger) for external pump operation, allows connection of hand, motor or synchronous lifting pumps (max. pressure 520 bar).
Safe stability due to swivel-mounted support feet.
Sensitive lowering valve for slow lowering of loads without jerks.
When operating the jack with an external pump the installation of a manometer is mandatory.
The integrated hydraulic pump is protected by a pressure-limiting valve.
The jacks are delivered ready-to-use inclusive of carrying handles, hydraulic oil filling and pump lever.
