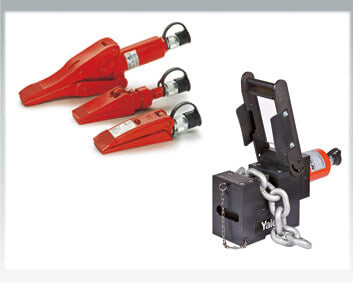

Yale Hydraulic chain cutter YCC-201

This hydraulic chain cutter has been designed for cutting high-tensile, grade 10 chains up to a material diameter of 16 mm. The open design allows easy positioning of the chain. The unit can be operated using the standard hand or motor pumps.

Recommended pump:

Electric power pack model PY-04/2/5/2M

Features

Cutting performance:
max. material dimension grade 10 Ø: 16 mm
max. cutting force: 23 t
Weight: 37.4 kg
Solid, stable and rigid body
Built-in standard hydraulic cylinder, single-acting with spring return
Both through-hardened cutting blades are identical in construction, can be re-sharpened and are easy to remove
Protection flap with acrylic glass pane allows safe monitoring of cutting process
Opening in base plate allows chips and splinters to fall down through the body for removal
Special chain support device for cutting larger chains
