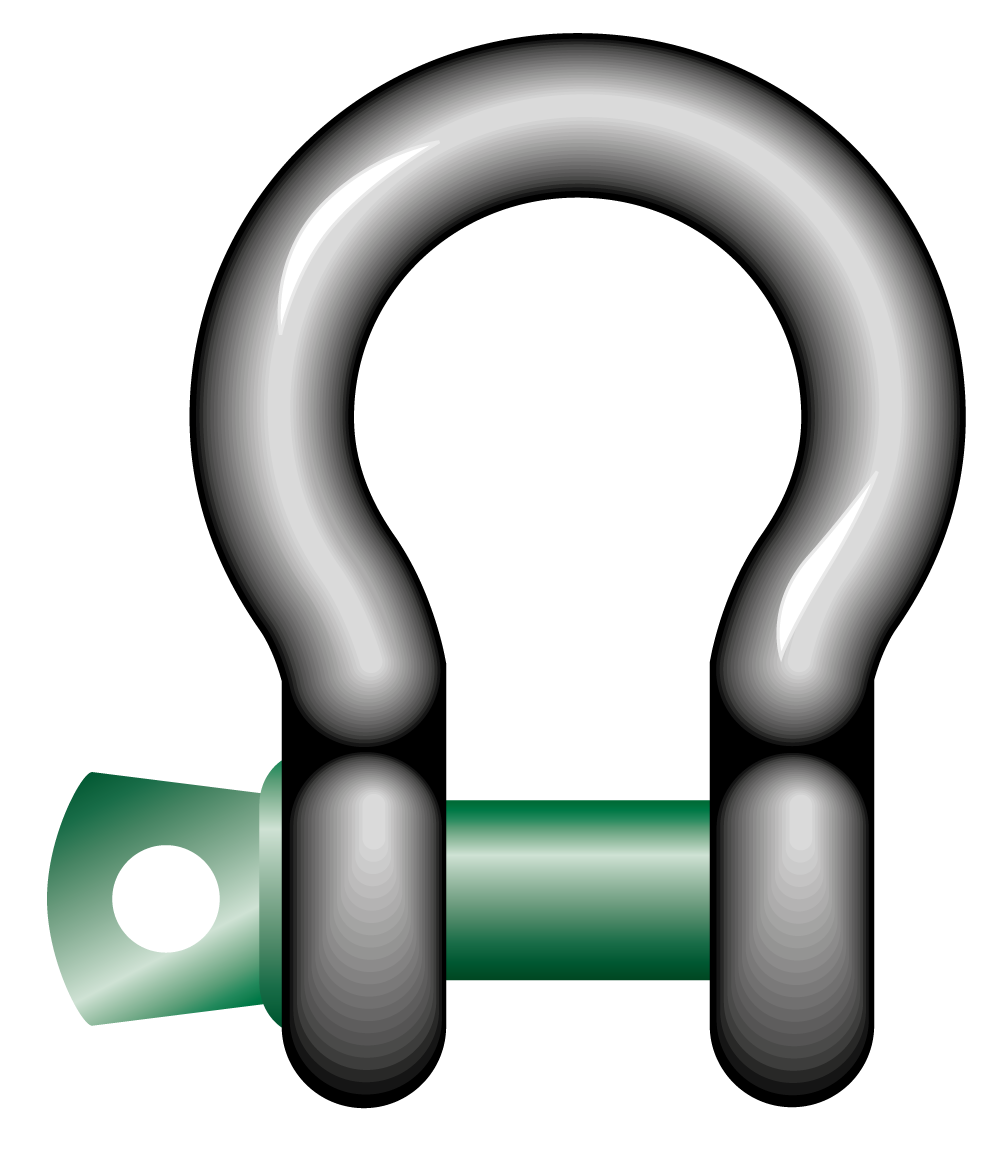

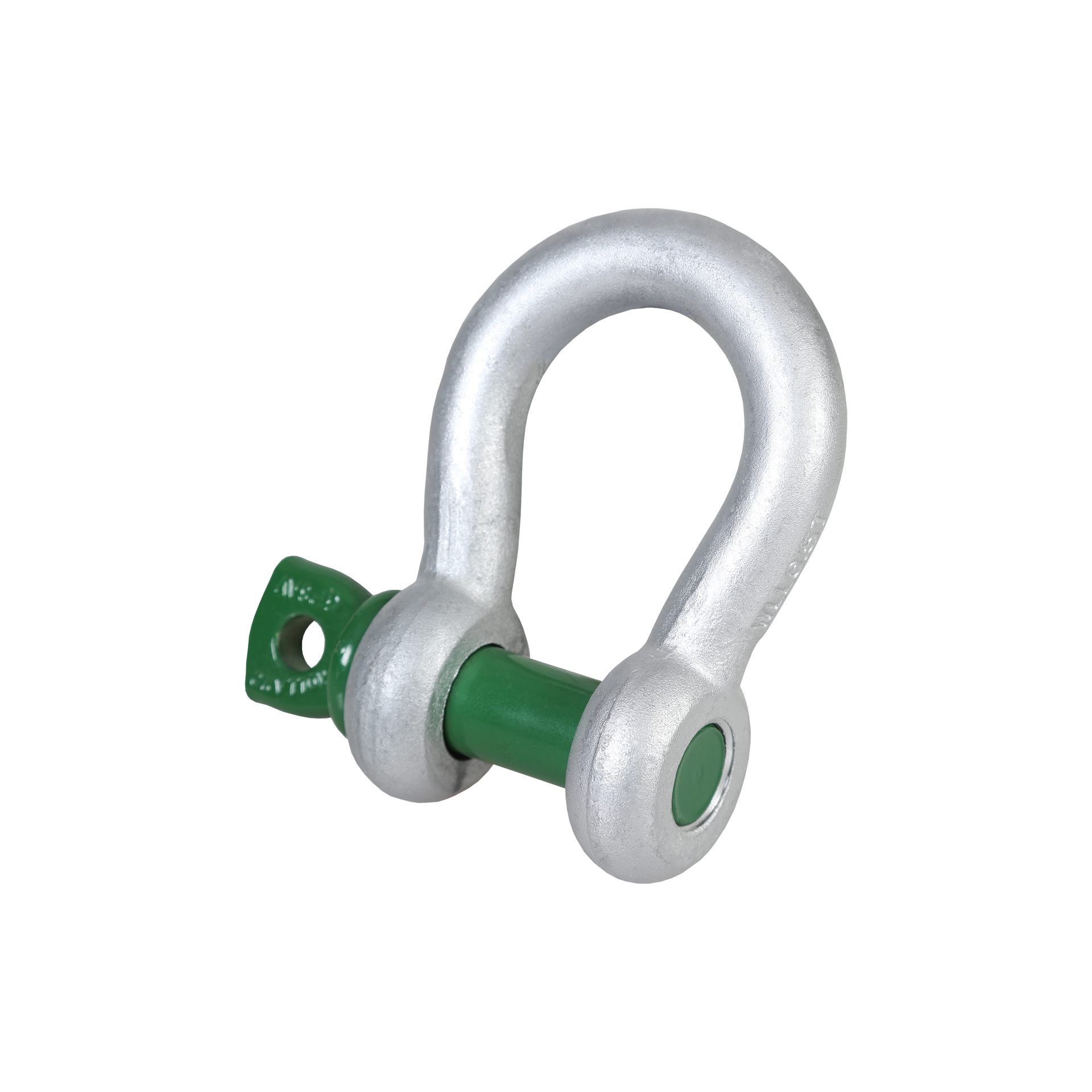

Green Pin® Screw Bow Shackle
by Green Pin
SKU GPGHBB05
Capacity: up to 55000Kg
€5.38
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised finish.
- Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance
requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A. - From 2t upwards, these shackles comply with ASME B30.26.
- Minimum breaking load is 6 times the W.L.L.
- Temperature range -40°c up to +200°c.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
