Workshop Motorised Gantry Crane PORTMOT
SKU PORTMOT
Capacity: up to 6300Kg
Price on application.

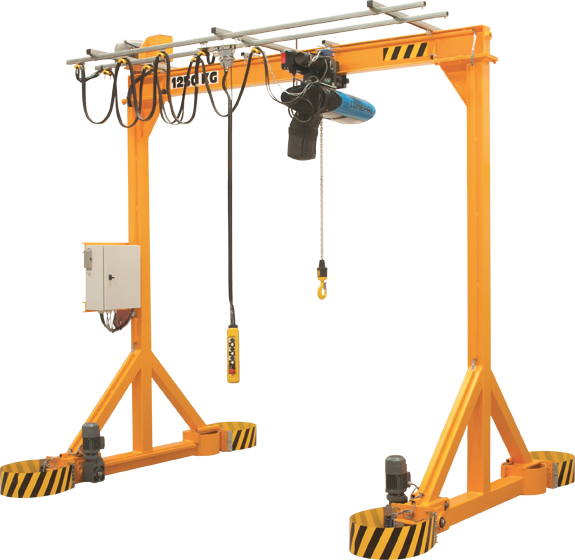

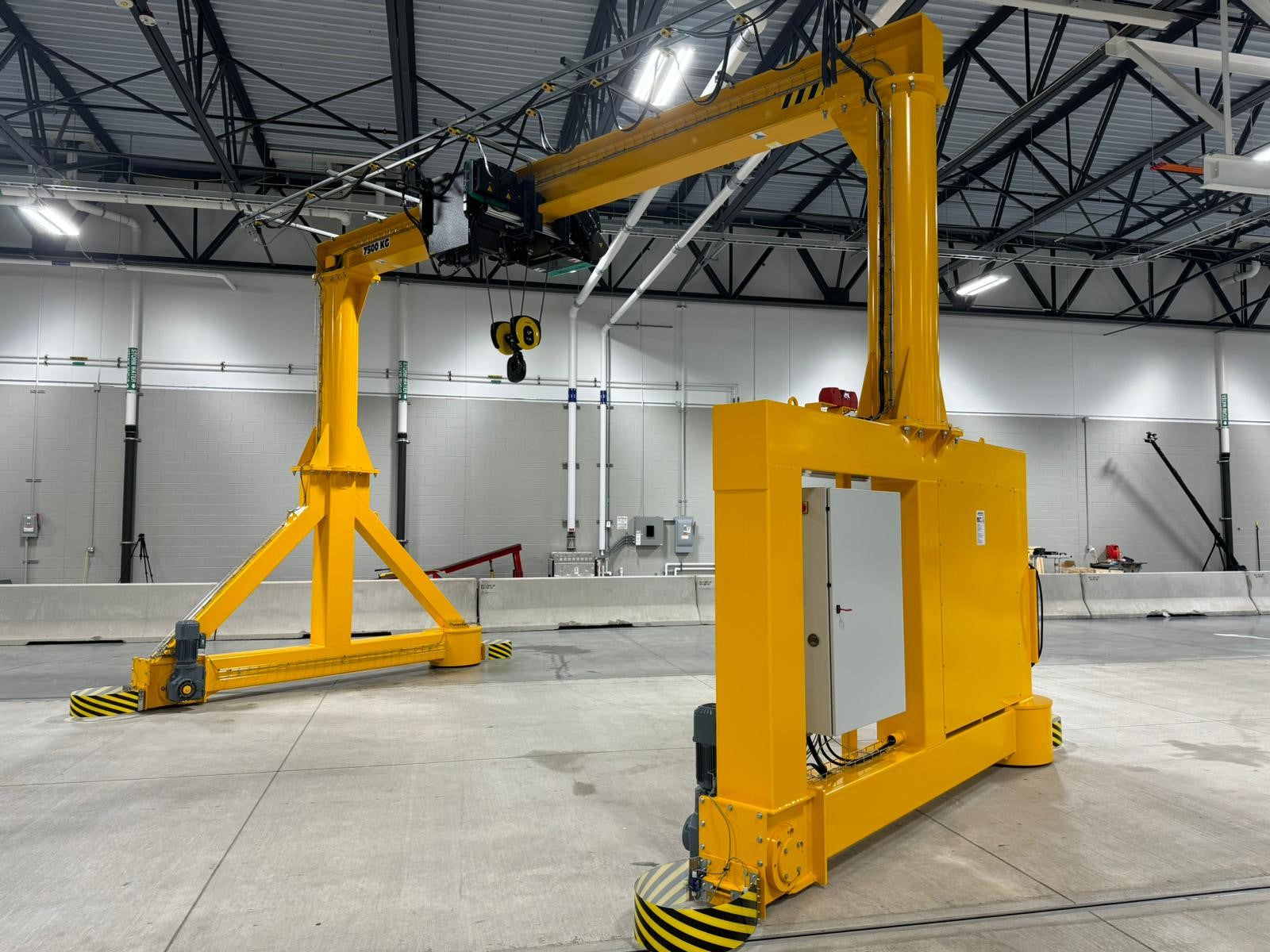

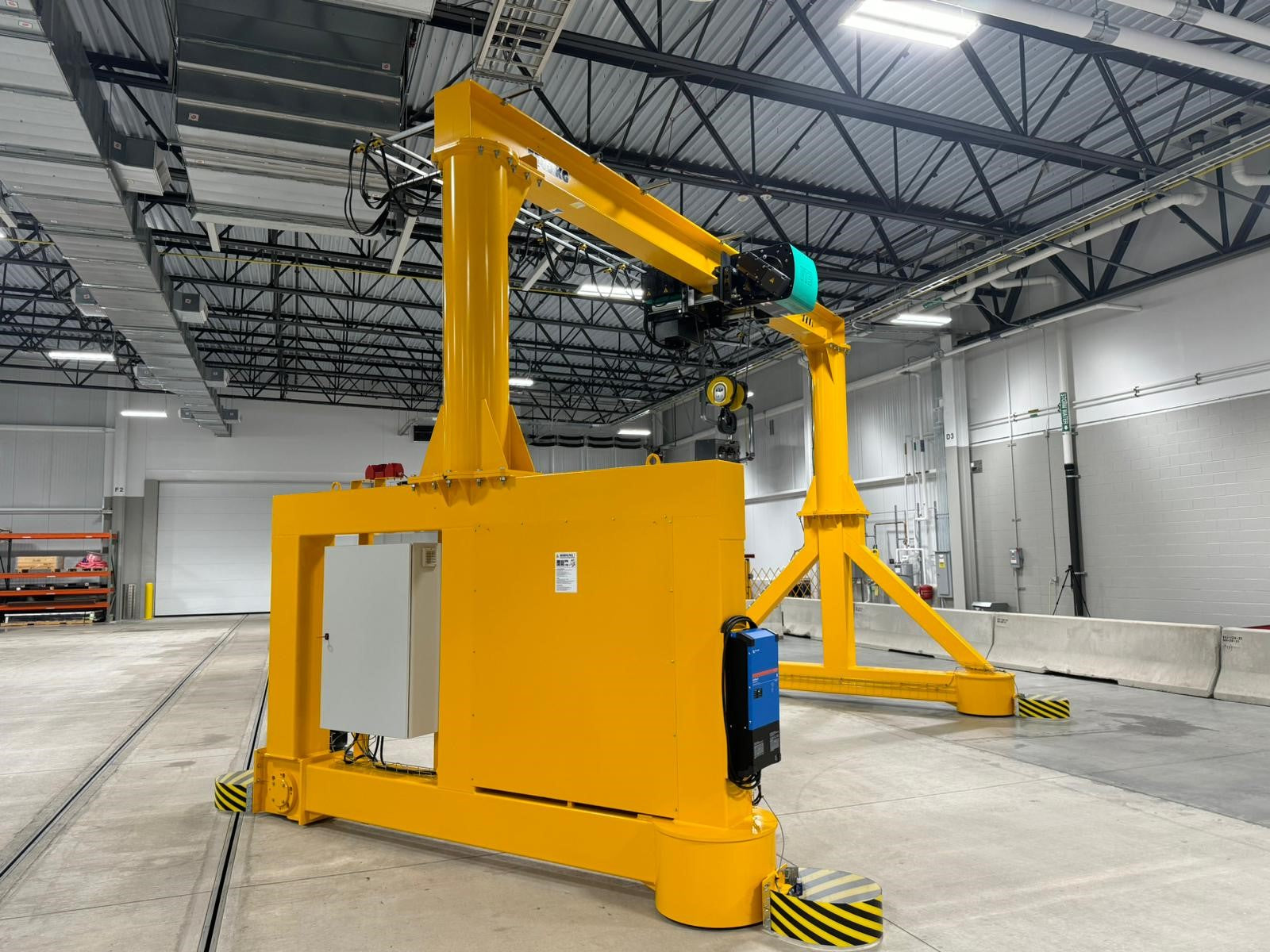

Motorized gantry crane for indoor use.
- Options for outdoor use.
- Use on smooth and clean concrete floor.
- Max slope 2%.
- Welded construction.
- 2 Motorized non swivel polyurethane wheels.
- 2 Castor polyurethane wheels.
- Electrical equipment with mobile pendant (low voltage 48 V).
- 2 travelling speeds 10 m / min and 20 m / min with inverter.
- Swiveling of the gantry by inversion of the motors.
- small swiveling speeds.
- Reversing switch on the pendant.
- 4 safety full stops.
- Protection: grinding SA 2.5 + polyester powder painting 60 microns C2.
- RAL 1028 yellow finish.
- Maximum hoisting speed = 16 m / min.
- Maximum traveling speed = 10 m / min.
- Packing under shrink film for transport by truck.
- Not suitable for sea freight.
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
