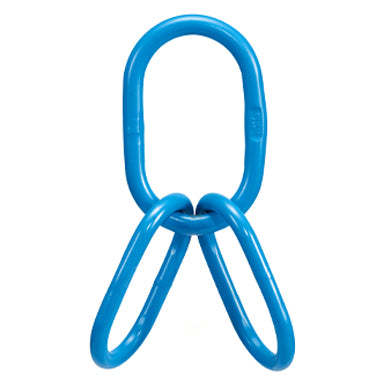

X-007 G100 Welded Master Link Assembly
by YOKE
SKU X-006-19
Capacity: up to 45000Kg
€40.32
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 5:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature at a minimum of 400°C
- Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings
- Each link is marked with batch number that links to the test certificate with full traceability to raw materials
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
