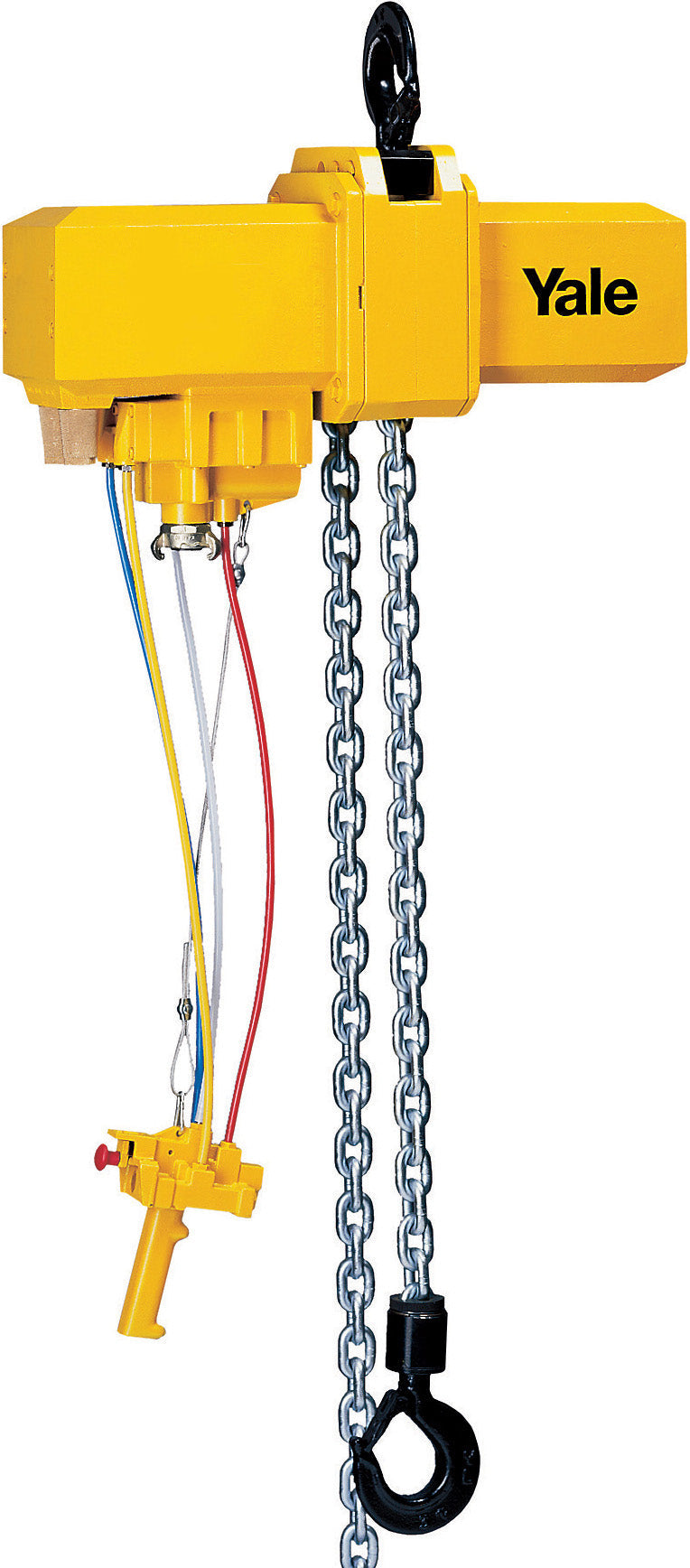

Yale CPA ATEX Heavy Duty Pneumatic Chain Hoist (10000Kg)

Yale CPA ATEX Heavy Duty Pneumatic Chain Hoist (10000Kg)

by Yale
SKU

Capacity: up to 10000Kg

Hook Suspension

€26,435.79

With 100% duty rating and an unlimited number of starts the model CPA is suitable for heavy duty applications.

It is insusceptible to contamination, humidity and aggressive mediums from the outside.

The hoists are composed of three main components which makes service easy and inexpensive.

Model: CPA ATEX 100-3 (10000Kg - 4 Chain Falls)

This product can lift a maximum of: 10000Kg

If you require a different maximum lift capacity, please select from the options below:

Availability: Translation missing: en.general.icons.icon_check_circle icon Typically shipped within 3-5 working days

If the options here don't meet your requirements, we can customise your order.

Please give us a call on (021) 4885 311 or complete the quote request form.

Features

  • Working pressures 4 - 6 bar.
  • Robust rotating piston motor has an adjustable spring pressure brake that holds the load secure even in theevent of an air failure.
  • The standard, oil bath lubricated planetary gearbox is particularly smooth running and enables a low overall height.
  • High starting torque due to switching valves in the motor body.
  • Low noise emission due to large dimension silencer.
  • Sensitive control by means of 2 resp. 4 button pendant control with emergency-stop.
  • The assembly of component parts result in a low overall height (up to 3000 kg only one chain fall).
  • The 5-pocket load chain sheave, manufactured from wear resistant case hardening steel, is matched perfectly to the load chain to guarantee smooth and precise chain motion.
  • Forged suspension and load hooks are made from nonaging, high tensile steel and fitted with robust safety latches.
  • The standard case hardened and zinc-plated link chain is matched perfectly to the load chain to guarantee smooth and precise chain motion.
    All requirements of national and international standards and regulations are fulfilled.
  • Copper-coated suspension and load hooks for MEDIUM design or higher.
  • Stainless steel load chain for HIGH design.
